200GBASE-SR4 QSFP56 850nm 100m DOM MTP/MPO-12 MMF Optical Transceiver Module

Product Categories
Shenzhen HiLink Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

200GBASE-SR4 QSFP56 850nm 100m DOM MTP/MPO-12 MMF Optical Transceiver Module

Brand Name : HILINK

Model Number : HL-QSFP56-200G SR4 100M

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000PCC/MONTH

Delivery Time : 5-8 Working days

Packaging Details : Normal package

Product name : QSFP56-200G-SR4

Data transfer rate : 200G

Connector : Mpo

Distance : 100M

Hot-Pluggable : Yes

Modulation Format : PAM4

DDM Support : Yes

OEM : Can be customized

Contact Now

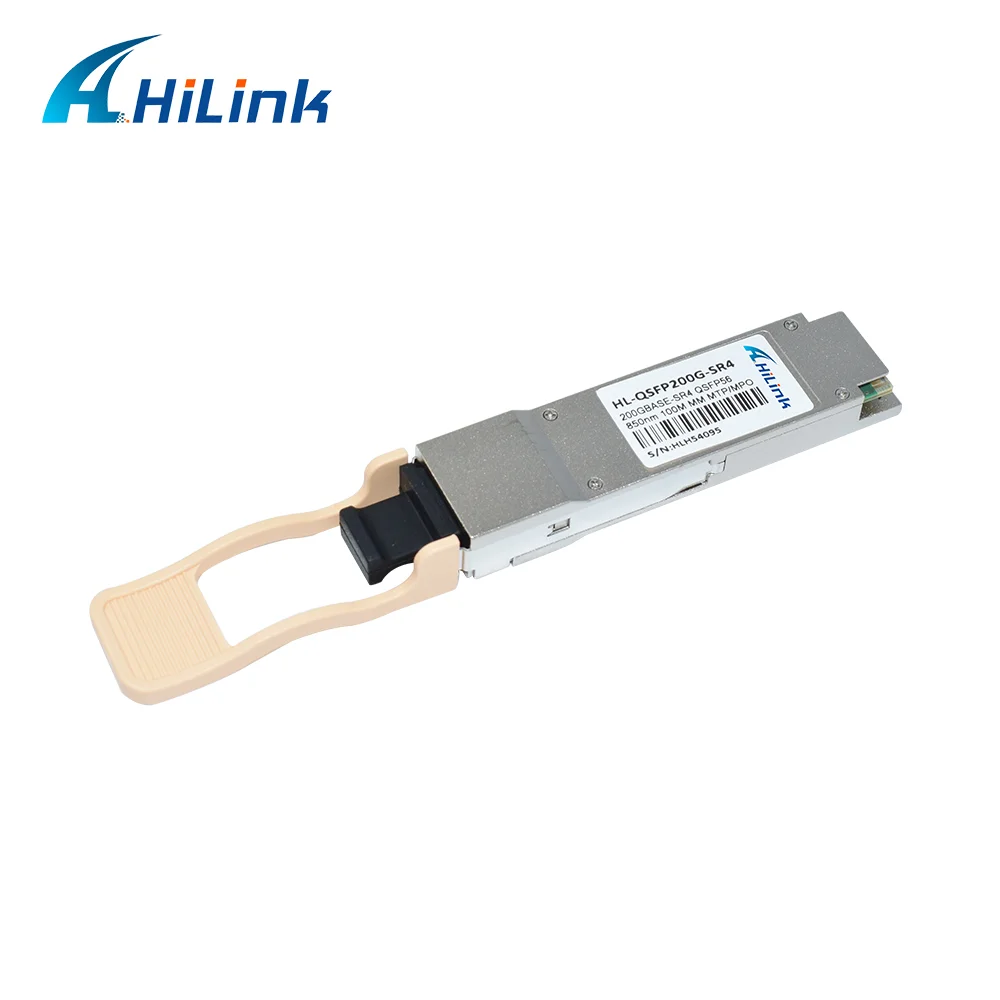

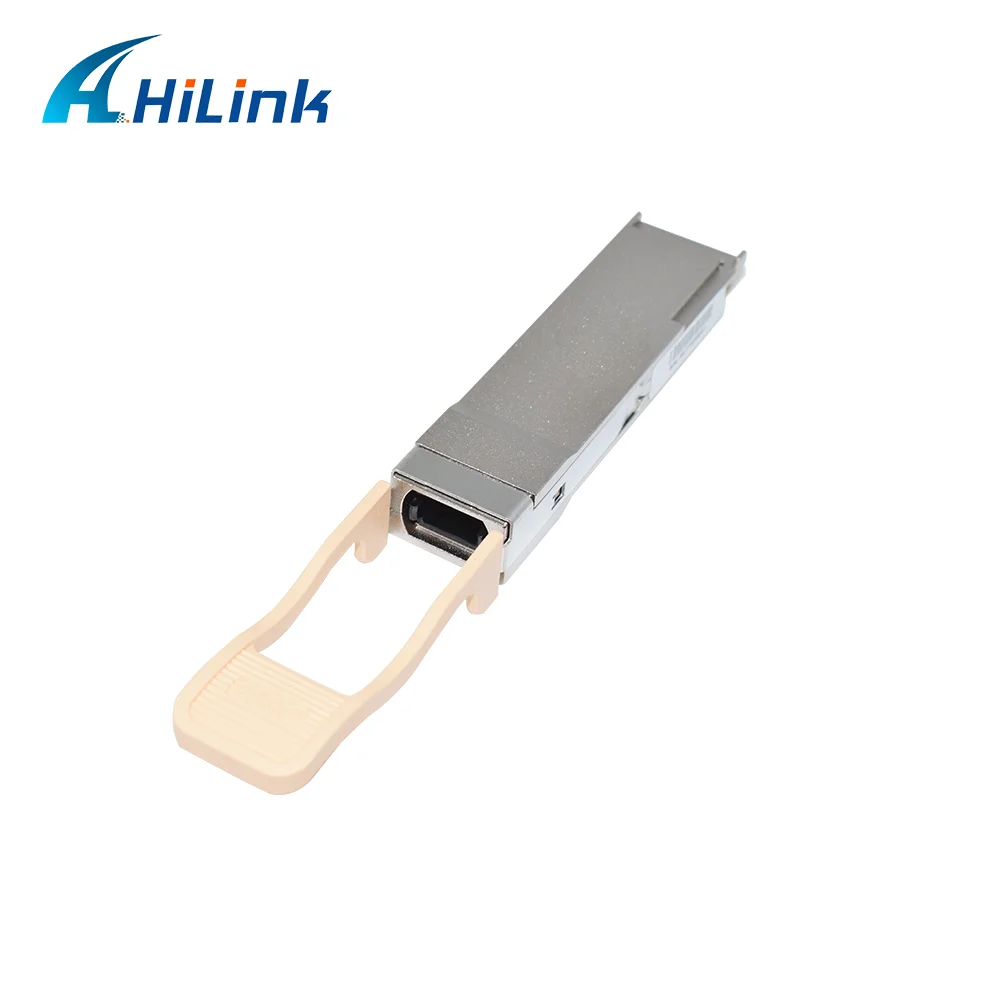

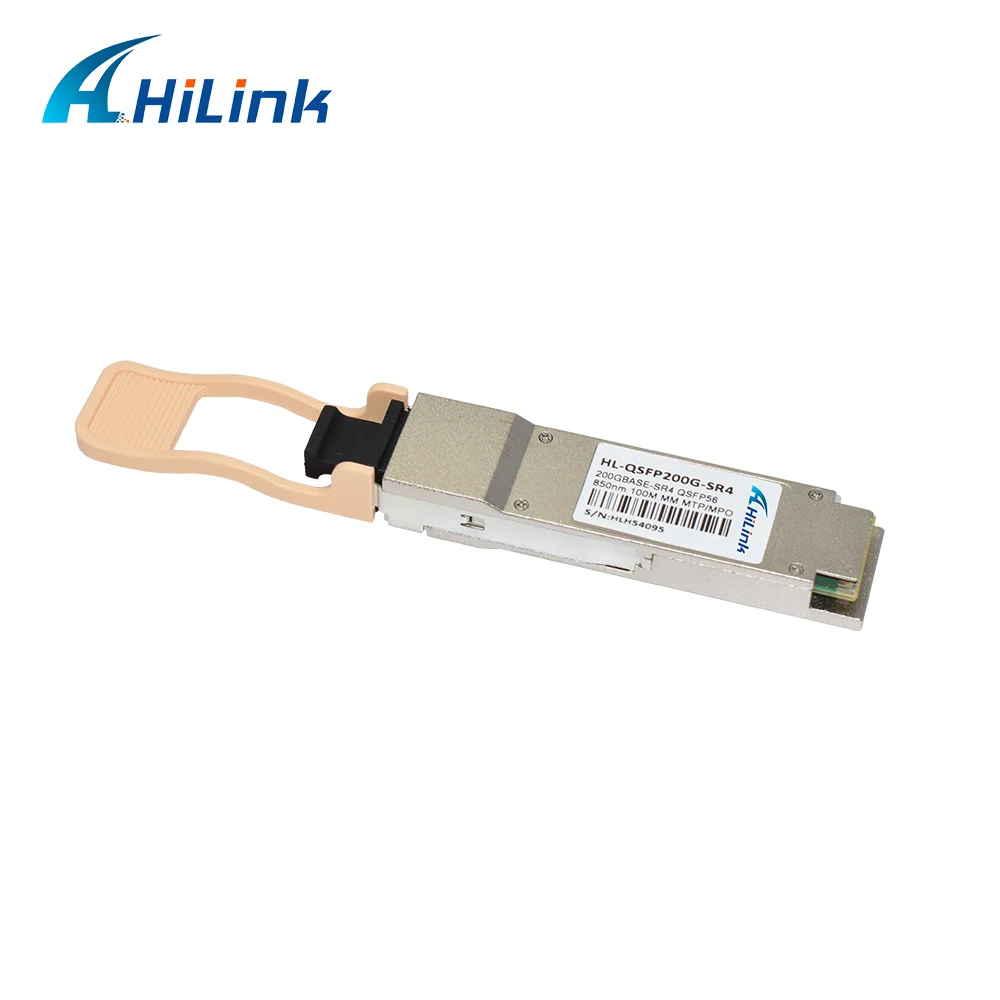

200GBASE-SR4 QSFP56 850nm 100m DOM MTP/MPO-12 MMF Optical Transceiver Module

The HiLink 200G QSFP56 SR4 is a 4×50Gbps multi mode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with baud rate at 26.5625GB each lane. It can transmit up to 70 m on fiber OM3 fiber or 100 m on OM4 fiber with FEC

Applications

• 200GBASE-SR4 Ethernet links

• Data centers

Features

• Compliant with IEEE Std 802.3bs, IEEE Std 802.3cm

• Compliant with 200G-SR4 optical specifications

• Compliant with SFF-8679

• Compliant with CMIS4.0 Management interface specifications

• 4x53.125Gb/s electrical interface (200GAUI-4)

• Reach up to 70m on MMF(OM3)

• Reach up to 100m on MMF(OM4)

• Single +3.3V power supply

• Case temperature range: 0 ~ +70℃

• Maximum power consumption 5W

• Single MPO12 connector

• RoHS complaint
