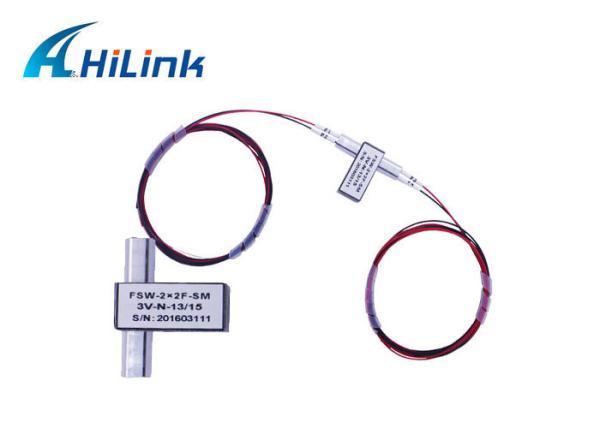

2×2F Fiber Optical Switch - General

HL-FSW-2×2F Optical Switch, which is famous for its high performance, low insertion loss and compact . It is an ideal component for OADM, OXC, system monitoring and protection.

Features

Wide band operation

Low insertion loss

Low PDL

High cross talk

High stability and reliability

Path without epoxy

Application

OADM

WAN

Laboratory

Monitory&detection

SUN 2×2F Fiber Optical Switch - Specifications
Parameters	Unit	HL-FSW-2x2F
Wavelength Range	nm	850±40 / 1300±40	1260 ~ 1650
Test Wavelength	nm	850 / 1300	1310 / 1550
Insertion Loss 1, 2	dB	Typ: 0.8 Max: 1.2	Typ: 0.8 Max: 1.0
Return Loss 1, 2	dB	MM ≥ 30 SM ≥ 50
Crosstalk 1	dB	MM ≥ 35 SM ≥ 55
PDL	dB	≤0.05
WDL	dB	≤0.25
Repeatability	dB	≤±0.02
Operating Voltage	V	3 or 5
Durability	Cycles	≥ 10 Million
Switching Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Weight	g	14
Dimension	mm	27x12.6x8.0

2×2F SM Optical Route

Full Function 2X2F Optomechanical Switch High Stability CE ROHS Certification

2×2F Fiber Optical Switch - Pin Configurations
Type	Optical Route	Electric Drive				Status Sensor
2x2F		Pin 1	Pin 5	Pin 6	Pin 10	Pin 2-3	Pin 3-4	Pin 7-8	Pin 8-9
Latching(A)	P1-P2,P3-P4	--	--	GND	V+	Close	Open	Open	Close
Latching(B)	P1-P4, P3-P2	V+	GND	--	--	Open	Close	Close	Open
Non-latching(A)	P1-P2, P3-P4	--	--	--	--	Close	Open	Open	Close
Non-latching(B)	P1-P4, P3-P2	V+	--	--	GND	Open	Close	Close	Open

Ordering Information:

2×2F Fiber Optical Switch - Ordering Information: -SW-2×2F-A-B-C-D-E-F-G
A	B	C	D	E	F	G
Fiber Type	Operating Voltage	Switch Type	Test Wavelength	Tube Type	Fiber Length (Include connector)	Connector
SM: SM,9/125 M5:MM,50/125 M6:MM,62.5/125 X: Others	3: 3V 5: 5V	L: Latching N: Non-latching	850:850nm 1310:1310nm 1550:1550nm 1310/1550: 1310/1550nm X:Others	25:250um 90:900um X: Others	05:0.5m±5cm 10:1.0m±5cm 15:1.5m±5cm X:Others	OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC LP: LC/PC LA: LC/APC X: Others
